Plastic Recycling Line

500 kg/hour

Model PL040

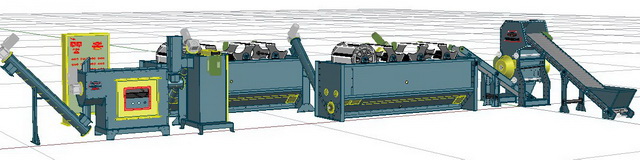

 Plastic Recycling Line 1

Conveyor - Crusher – Conveyor – Tank – Filter – Screw – Tank – Screw – Dryer – Dryer - Screw.



General Specifications for the Line

  1. Line for crushing, washing and drying plastic with a production capacity of 500 kg/hour

  2. Machines are manufactured with Egyptian steel and ready-made European components

  3. The line works on heavy and light plastic materials such as PP, PE, LDPE, HDPE, PVC, PET

  4. The line produces plastic flakes up to 25 mm after crushing, washing and drying.

  5. Parts in contact with plastic are made of rust-resistant galvanized steel

  6. Metal parts are manufactured on computer-controlled laser machines to ensure dimensional accuracy

  7. Machine parts are assembled with bolts without any welding to facilitate maintenance

  8. Power consumption: 95 kW/hour

  9. Water consumption: 2 cubic meters/hour

  10. Required workers: 3 per shift

  11. Required floor area: 150 sqm with 6 m height

  12. Central control panel for all machines with necessary protection



Plastic Recycling Line 2





General Specifications for Each Machine:

Conveying Belt

Plastic Recycling Line 3

  1. Belt for conveying plastic to the crusher and discharging at a constant rate

  2. The belt is manufactured with Egyptian materials and ready-made European components

  3. The belt body is laser-cut from high-quality steel sheets.

  4. The belt operates at a 30-degree angle from the ground.

  5. Total length up to 3.5 meters

  6. Total width up to 70 cm.

  7. Equipped with a lower hopper for collecting plastic

  8. Operates on a 3 HP electric motor with speed reducer.

  9. Linear speed is 18 meters/min

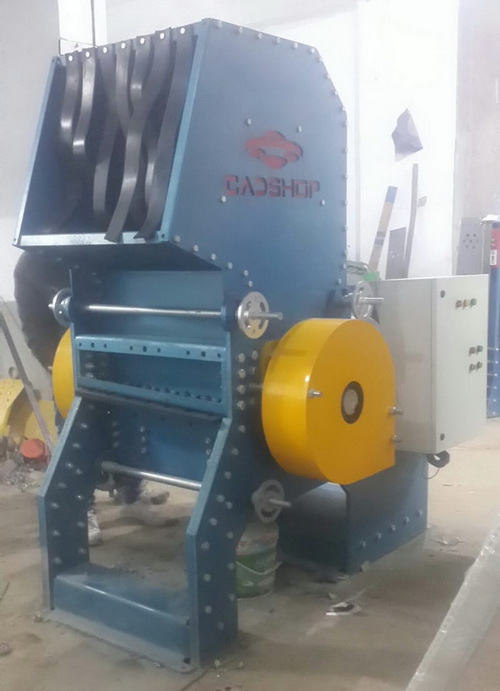

Plastic Crusher

Plastic Recycling Line 4

  1. Plastic crusher manufactured with Egyptian materials and European components

  2. Crushing chamber: 80 cm length x 50 cm width.

  3. Inner rotating shaft diameter with knives: 400 mm.

  4. Shaft equipped with 15 moving knives and 10 fixed knives.

  5. Moving knives: 130 mm x 160 mm, thickness 20 mm.

  6. Fixed knives: 140 mm x 160 mm, thickness 20 mm.

  7. Operates with 50 HP, 380 V electric motor.

  8. Production rate up to 500 kg/hour.

  9. Equipped with 25 mm lower screen, adjustable.

  10. Knives adjustable without opening the machine.

  11. Bolted assembly for easy maintenance.

  12. Total weight: 2.5 tons

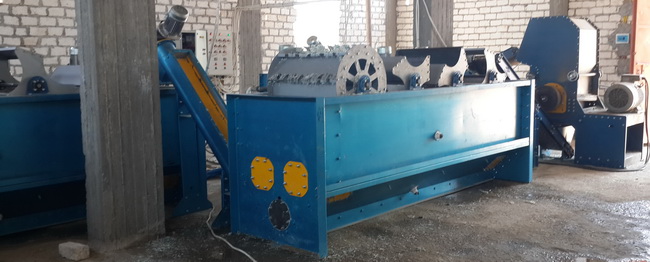

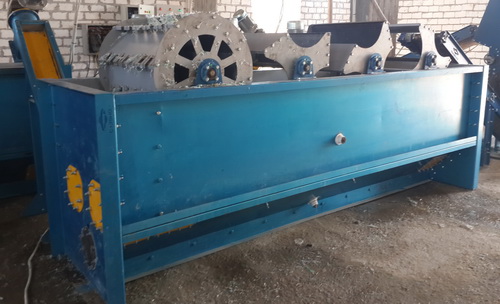

Washing Tank

Plastic Recycling Line 5

  1. Washing tank made of galvanized steel, capacity 500 kg/hour

  2. First stage: initial washing by friction, separating sand and impurities.

  3. Plastic transferred to next tank via conveying screw.

  4. Water drawn, purified, heated, and returned.

  5. Recycled water pumped onto plastic to separate labels.

  6. Second tank repeats washing and label separation.

  7. Water from second tank also purified and heated.

  8. Conveying screw with water for rinsing.

  9. Operates with 4 upper rollers, 50 cm diameter (for light plastic).

  10. Each roller driven by 2 HP motor with reducer.

  11. Equipped with 2 internal screws, 40 cm diameter (for heavy plastic).

  12. Each internal screw driven by 7 HP motor.

  13. Supplied with either upper rollers or lower screws.

  14. Prepared for side lifting screw to next stage.

  15. Connection point for water suction and filter unit.

  16. Lower sand trap for settled sand.

  17. External dimensions: 4 m x 110 cm x 130 cm

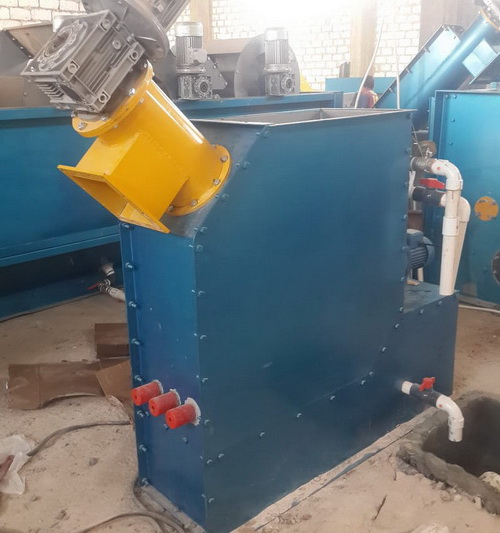

Washing Tank Filter

Plastic Recycling Line 6

  1. Filter with water recirculation to remove impurities and sand

  2. Water recirculated via pump for separation inside filter

  3. Equipped with screw for continuous discharge of impurities

  4. Heaters to heat water after suction

  5. Float valve for automatic water supply

  6. Valves for building water and drain connections

  7. Reduces need for multiple tanks and saves water

  8. Water pump: 2 HP

  9. Screw motor: 3 HP

  10. Electric heaters: 20 kW

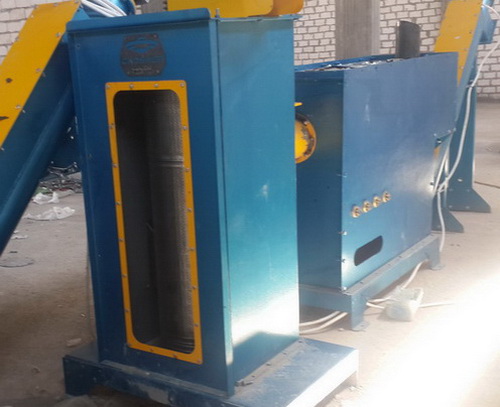

Centrifugal Dryer

Plastic Recycling Line 7

  1. Vertical centrifugal dryer, 1000 RPM

  2. Made of rust-resistant galvanized steel

  3. Inner drum: 40 cm diameter, 140 cm height

  4. Side hopper for feeding

  5. Rear unit to separate air from plastic

  6. Operates on 10 HP motor

  7. Internal screen with 3 mm holes

  8. Side door for cleaning and maintenance

  9. Capacity: 500 kg/hour

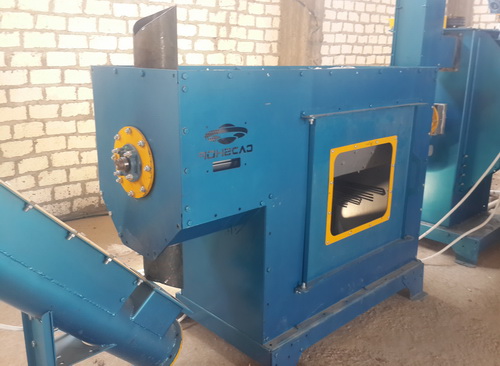

Thermal Dryer

Plastic Recycling Line 8

  1. Thermal dryer for drying after centrifugation

  2. Reduces moisture to less than 1%

  3. Capacity: 500 kg/hour

  4. Body made of 3 mm galvanized steel

  5. Operates via drying cylinder with hot air

  6. Cylinder driven by 2 HP motor

  7. Air heated by 20 kW electric heater

  8. Air blower circulates hot air and separates paper labels

  9. Blower with cyclone to separate paper and moisture

  10. Feed screw into dryer

  11. Bottom outlet for final plastic, top outlet for vapors

  12. Side door for cleaning

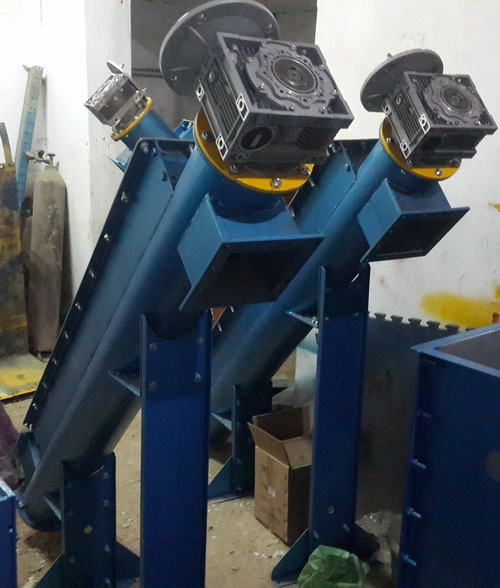

Screw Conveyor

Plastic Recycling Line 9

  1. Screw for lifting plastic between stages and to packing level

  2. Manufactured with Egyptian materials and European components

  3. Body made of 8-inch galvanized steel pipe

  4. Driven by 3 HP, 380 V motor with reducer

  5. Total length: 2.2 meters

  6. Capacity up to 500 kg/hour







More Pictures of the Line



Plastic Recycling Line 10



Plastic Recycling Line 11



Plastic Recycling Line 12
